Specification
| PP190DARB | |||
|---|---|---|---|
| Display Type | 19" TFT-LCD LED Backlight | USB Port | 6 × USB 2.0 (Back) / 2 × USB 2.0 (Optional) |
| Max Resolution | 1280*1024 SXGA | Serial Port | 3 × RS232 (ext. +3) (Max. 6) (Optional) 1 × RS485 or 1 × RS422 (Selectable) |
| Luminance | 400 cd/㎡ | Video Output | 1 × RGB, 1 × HDMI |

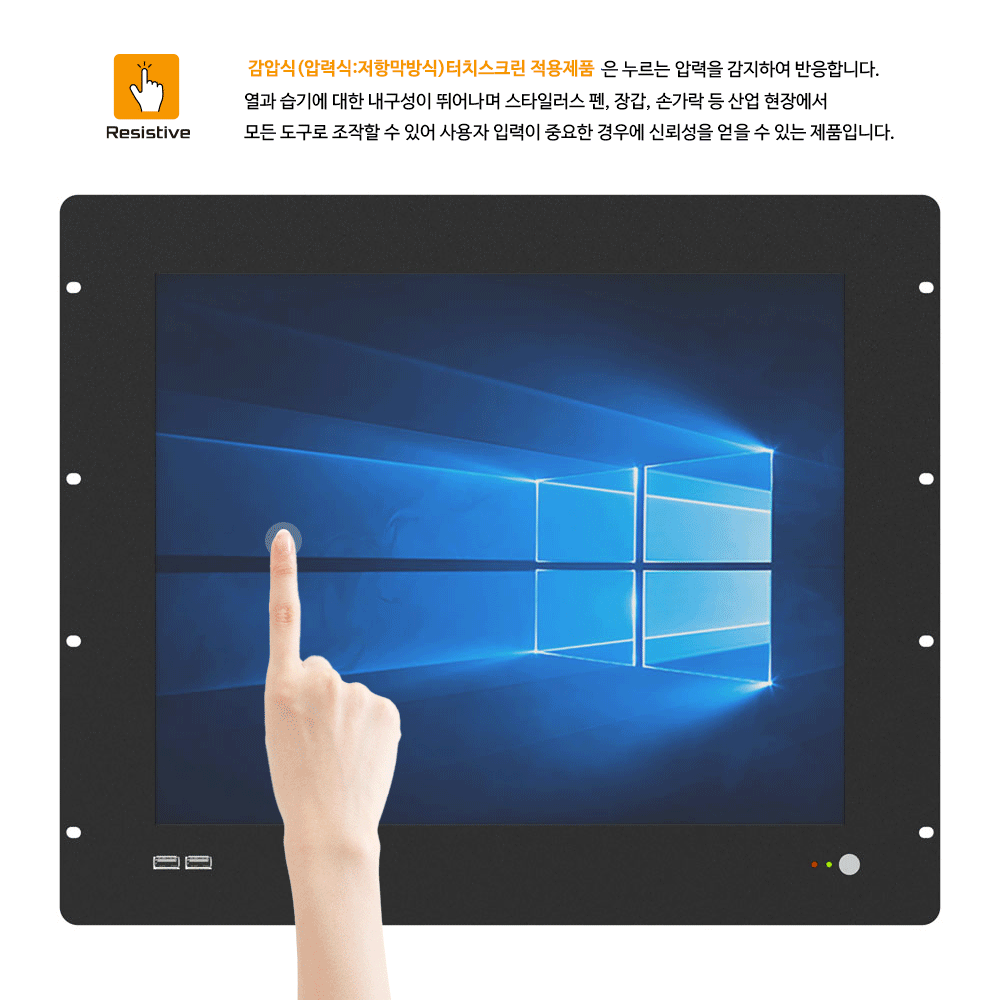

| Touch Screen | Resistive / Capacitive / Infrared | Audio Port | 1 × MIC, 1 × Line-out |
| CPU | Celeron J1900 / Core-i3, i5 | Wireless | 2 × WiFi / 3G SMA Antenna (Optional) |
| Graphics | Intel HD Graphics | Power | DC 12V 5A |

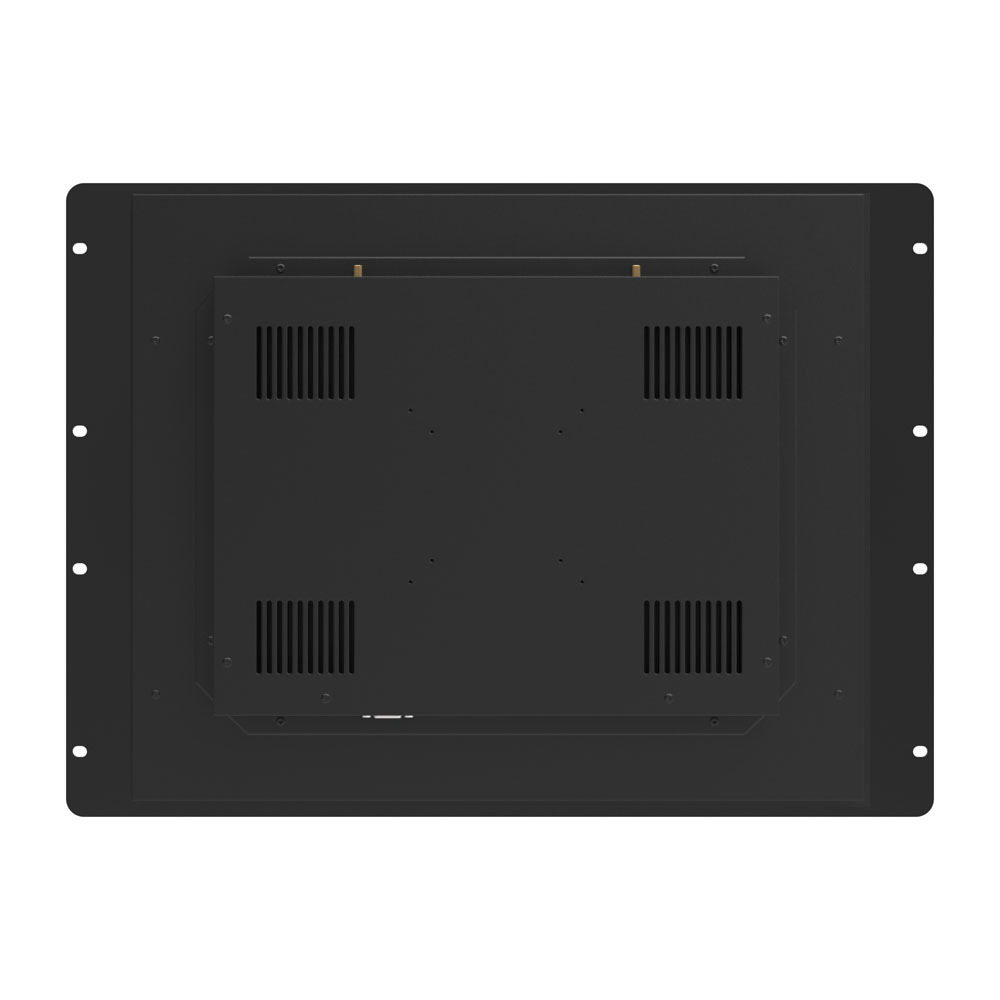

| Memory | 1 × DDR3 1.5V, 2GB / 4GB / 8GB / Max | Mounting | VESA (75×75 & 100×100mm) & Clamps |
| Storage | HDD 500GB, 1TB / SSD 128~512GB (Selectable) | Operating Temp | 0℃ ~ 50℃ |
| Ethernet | 1 × RJ45 (RTL8111E) | Storage Temp | -20℃ ~ 60℃ |
※ I/O Port는 보드 사양에 따라 변경될 수 있으며 Customizing Item 관련 상담은 dnsys@dnsys.co.kr 로 문의하세요.
※ I/O포트는 보드 사양에 따라 변경됨
