Specification

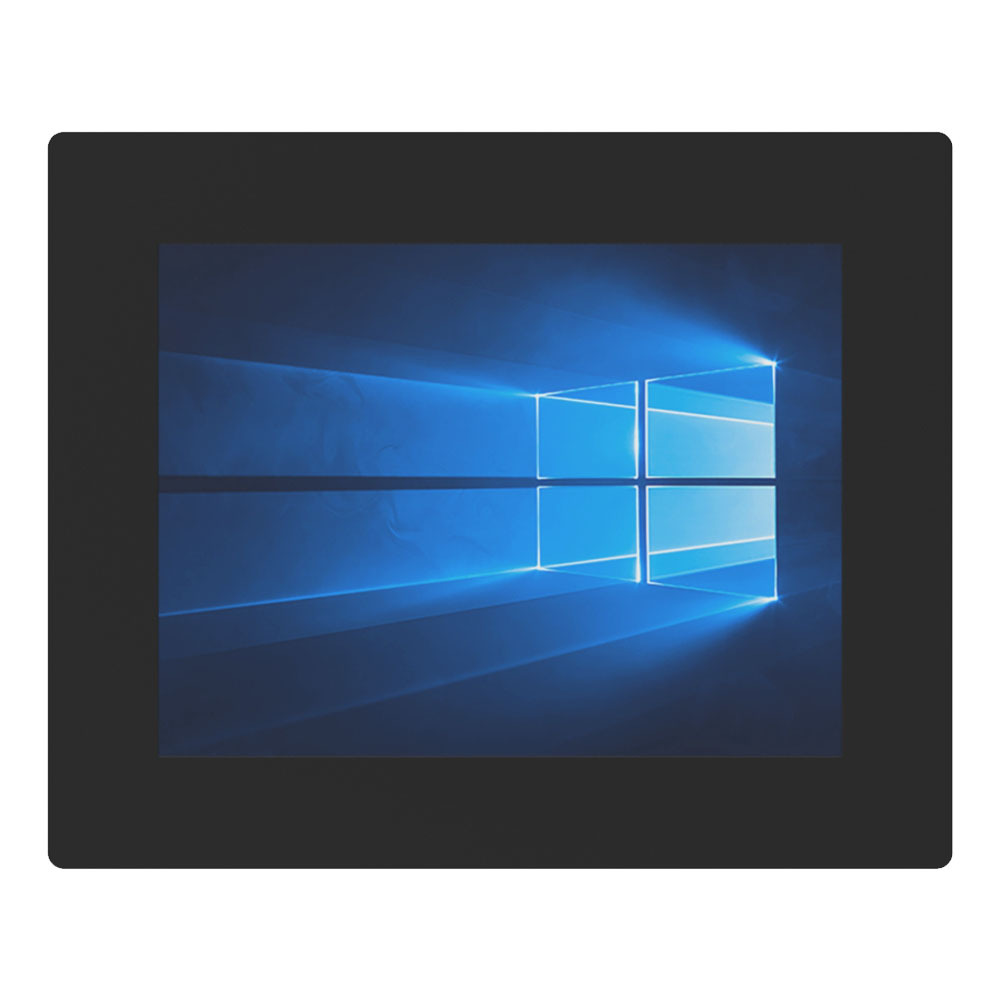

Display Type |
10.4" TFT-LCD LED Backlight |
USB Port |
6 * USB 2.0(Back side) / 2 * USB 2.0 (Optional) |
Max Resolution |
1024*768 XGA |

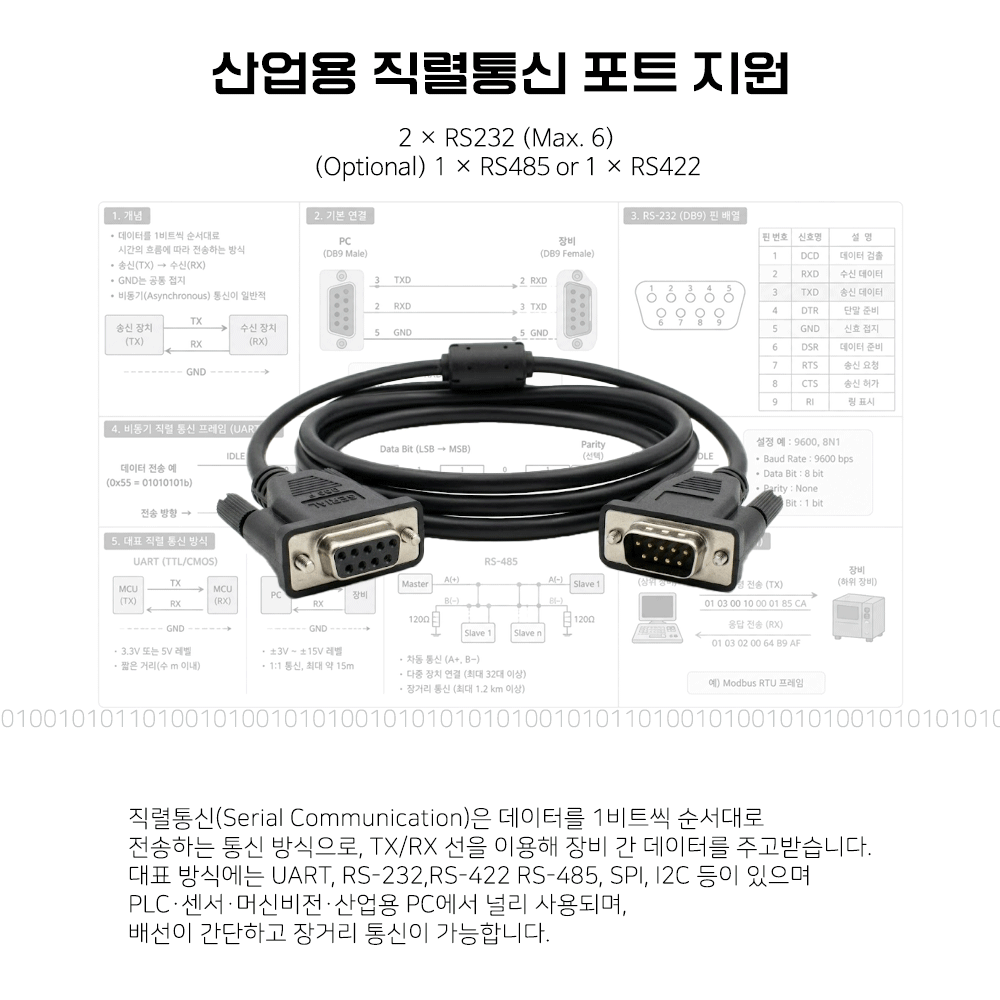

Serial Port |
3 * RS232 (ext. +3) (Max. 6) (Optional) (1*RS485 or 1*RS422 Selectable) (Optional) |
Luminance |
300 (cd/㎡) |

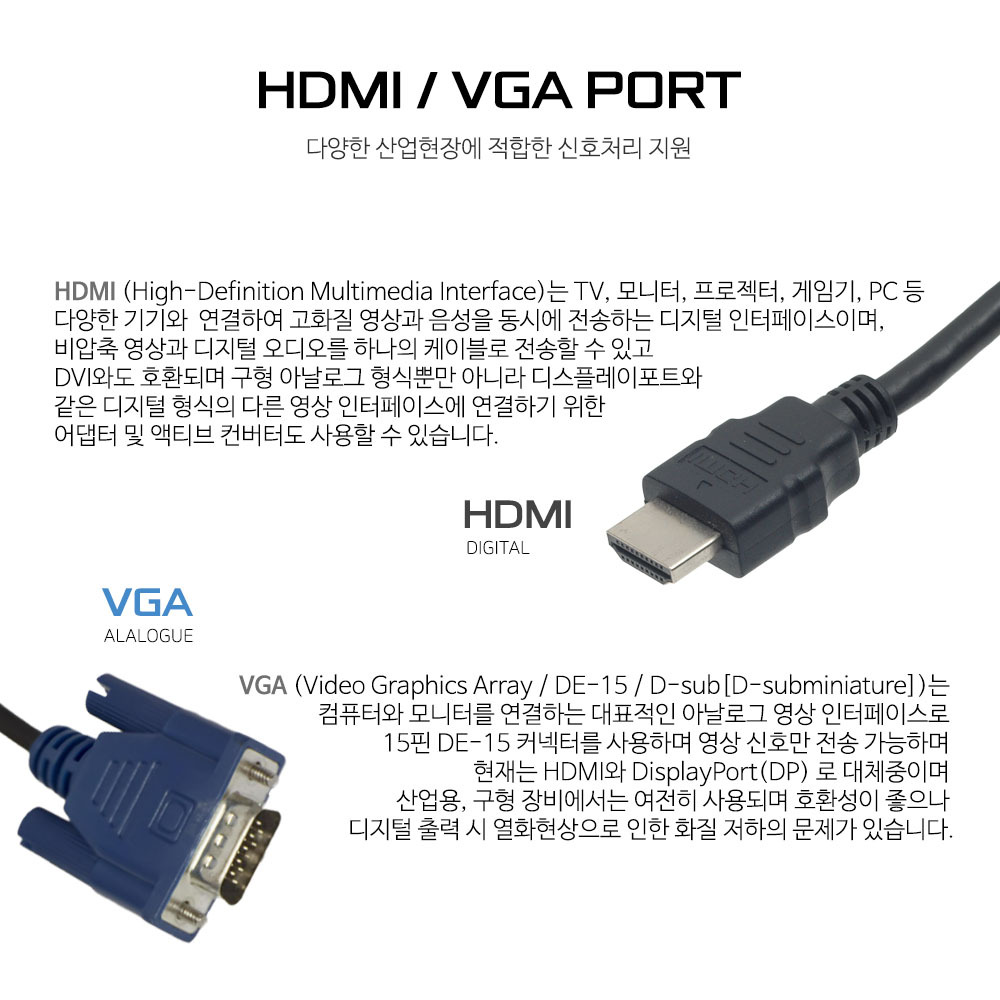

Video Output |
1 * RGB, 1 * HDMI |

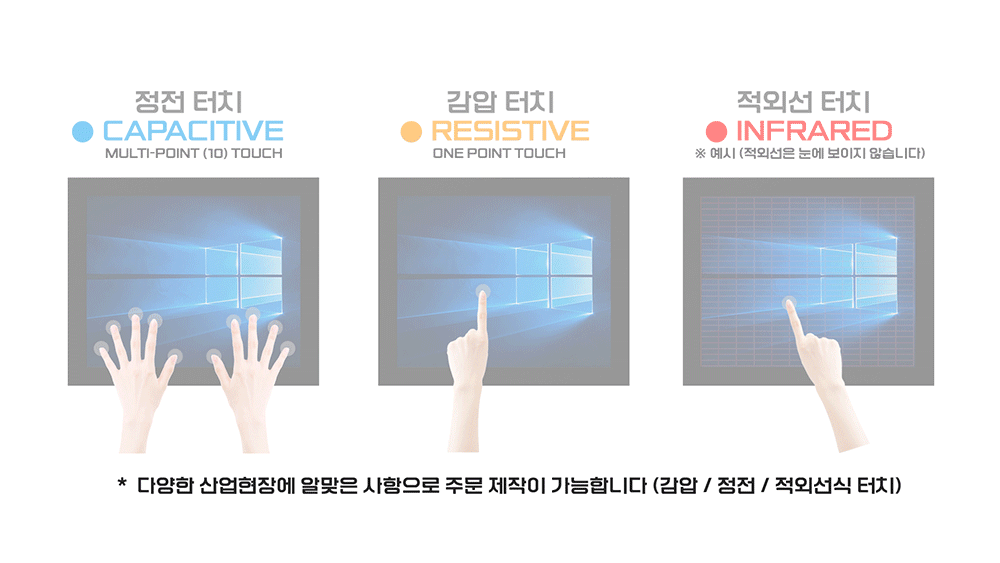

Touch Screen |
Resistive / Capacitive |
Audio |
1 * MIC, 1 * Line-out |
CPU |
Celeron J1900 / Core-i3, i5 |

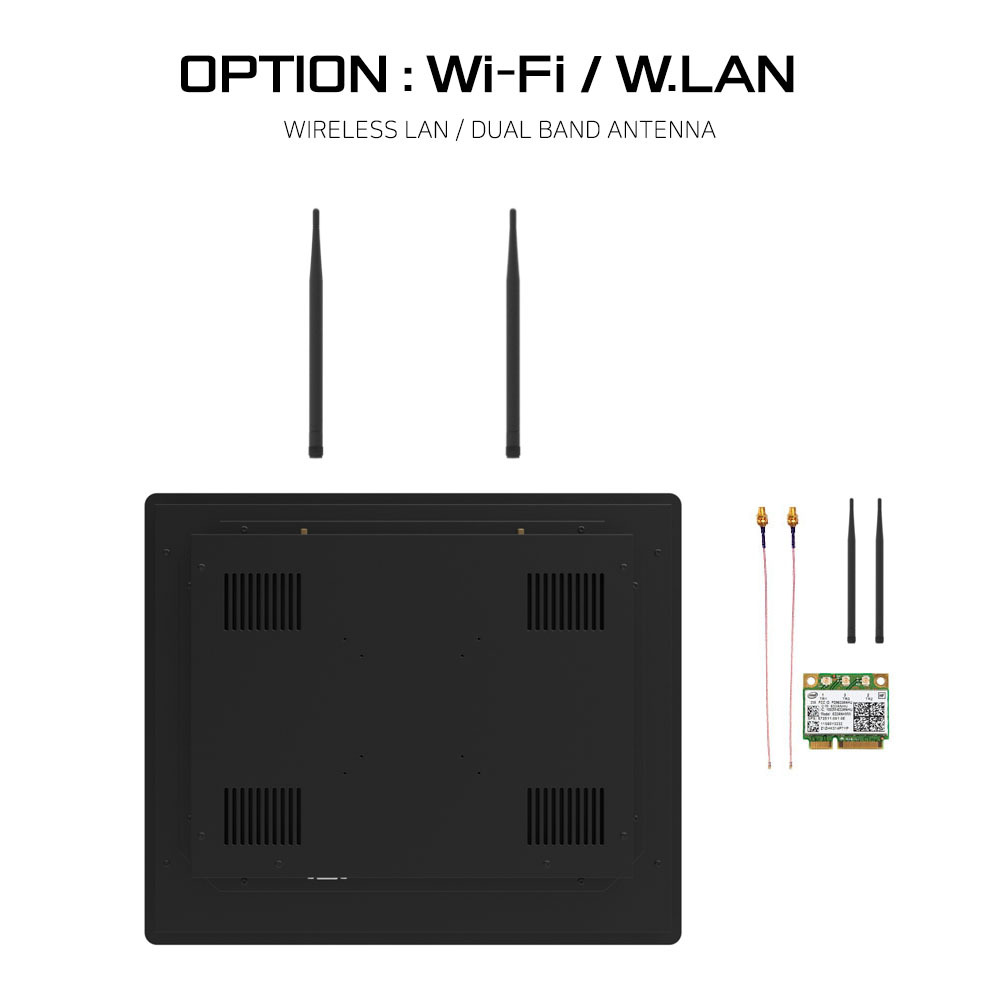

Wireless |
2 * WIFI / 3G SMA Antenna (Optional) |
Graphics |
Intel(R) HD Graphics |
Power |
DC 12V 5A |
Memory |
1 * DDR3, 1.5V, 2GB or 4GB |
Mounting |
19" Server Rack Mount |
Storage |
HDD 500G, 1TB etc / SDD 128, 256, 512GB etc (Selectable) |
Operating Temp |
0 to 50℃ |
Ethernet | 1 * RJ45(RTL8111E) | Storage Temp | -20 to 60℃ |

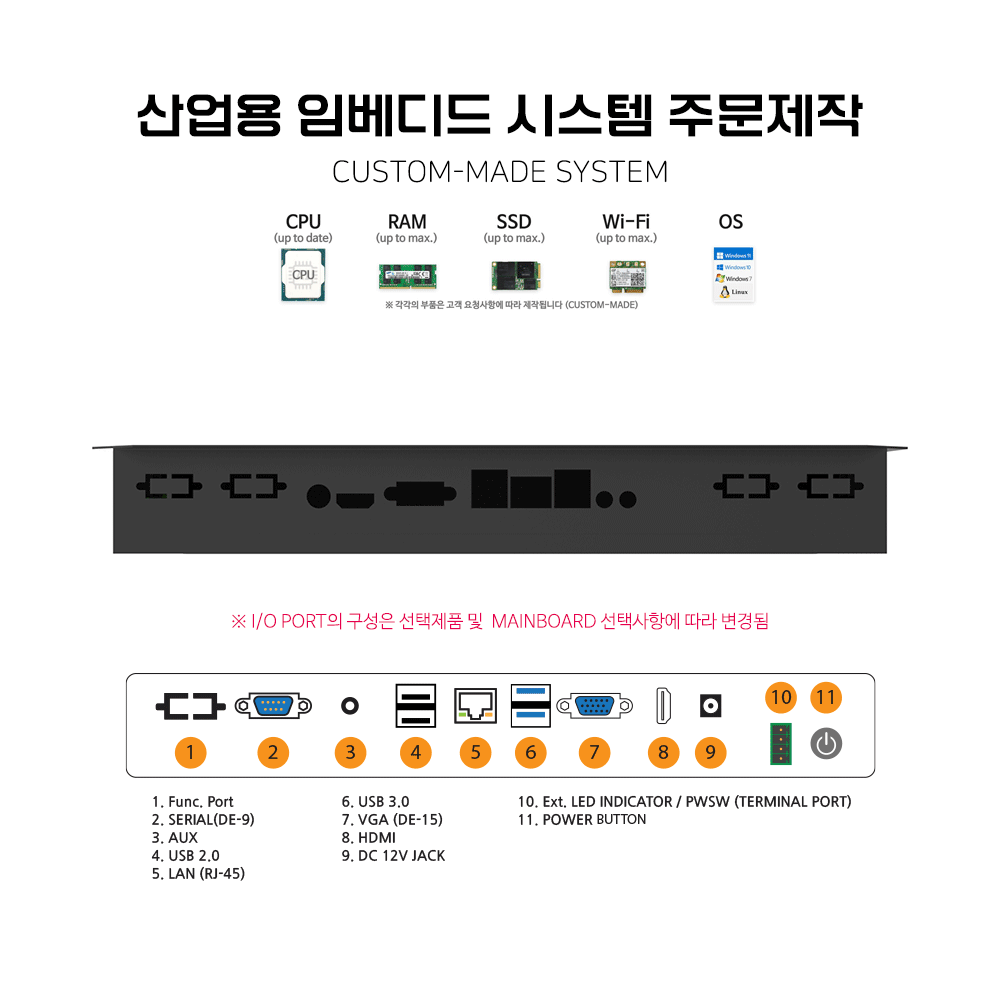

※ I/O Port는 보드사양에 따라 변경됨 / Customizing Item등 상담 문의 : dnsys@dnsys.co.kr
Note. Model No.변경 PP104DAPT -> PP104DAET (2024)
